識別產品霍尼韋爾honeywell采集器歡迎來電咨詢霍尼韋爾honeywell手持PDA,手持終端價格和型號：020-87030040。

霍尼韋爾的企業數字助理是數據密集型應用環境中的移動工作者的理想選擇，能夠滿足其對于堅固耐用而又僅有口袋大小的移動數據處理設備的需求。我們的EDA完美地結合了耐用性、特征組和尺寸大小，在與傳統移動數據終端相比時，三者的平衡性尤為凸顯。

MX9移動數據終端

霍尼韋爾MX9超級堅固型移動數據終端可降低總體擁有成本，并支持隨時隨地的無線連接，以確保用戶始終保持連通性。要獲得“超級堅固型設備”的稱號，這個設備必須達到IP67工業等級, 能夠經受住從2米高處到水泥地面的多次跌落及1m范圍內近2000次的翻滾測試。MX9的超強堅固性能不僅停留在實驗室階段。曾在裝卸碼頭被當作錘子來修理棧板，曾被用戶在各種極端條件下使用，MX9工業級移動數據終端的這些經歷證明了其實至名歸。

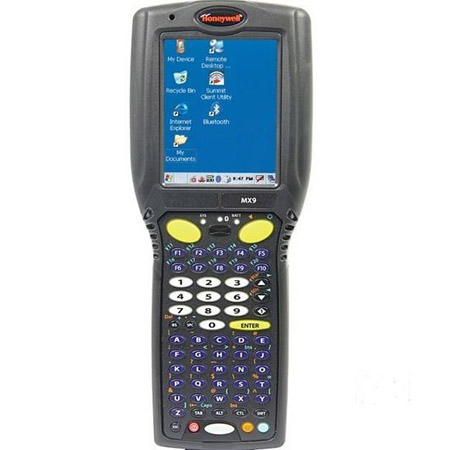

實物圖

MX9移動數據終端 Accessories

Batteries

MX9380BATTERY - MX9 Main Battery, Lithium Ion

MX9381BATTERY - MX9 Main Battery, Lithium Ion, Low-temperature

MX9382BATTERY - MX9 Main Battery, Lithium Ion, 10 pack

MX9383BATTERY - MX9 Main Battery, Lithium Ion, Low-temperature, 10 pack

Chargers

MX9385CHARGER - 4 unit Main Battery Charger, includes power supply and US power cord. Not for use in Hazardous Locations. Can be used with MX9HL outside Hazardous Locations

MX9384CHARGER - 4 unit Main Battery Charger, includes power supply. C14 type power cord must be ordered separately, not for use in Hazardous Locations. Can be used with MX9HL outside Hazardous Locations. AC power cord is not included. A country specific power cord must be purchased separately. When this product is shipped internationally it may be necessary to order and ship the appropriate international AC Power Cable at the same time. This product has a C14 style AC power connector, so please choose the proper C14 style cable from the International cables in the power cable section below.

Cradles

MX9002DSKCRDL - MX9 desktop cradle, with spare battery charging and Ethernet, USB host, USB client, and powered RS-232 connectors. Power supply and power cord must be ordered separately. Must order power supply MX9301PWRSPLY or MX9302PWRSPLY separately. Must order country specific, C14 power cord separately. Rated for operation between 0 deg C and 40 deg C (32 deg F and 104 deg F) and spare battery charging between 10 deg C and 40 deg C (50 deg F and 104 deg F). Not for use in Hazardous Locations. Can be used with the MX9HL outside Hazardous Locations.

MX9005VMCRADLE - MX9 active vehicle cradle. Supports MX9 charging. Supports USB host, USB client and powered RS-232 connector. Must order power supply and cables separately. For 12V DC operation, order cable 9000A079CBL12ML3. Communication cables must be ordered separately from cables listed in the “Interface Cables” section. RAM mount bracket must be ordered separately. Cradle will perform “in-unit” battery trickle charging. Tethered serial RS-232 barcode scanning supported. Rated for operation to 14 deg F and 122 deg F (-10 deg C and 50 deg C).

MX9007BRKTKIT - RAM mount kit for MX9 active vehicle cradle. For use with MX9005VMCRADLE.

Handles

MX9401HANDLE - MX9 padded handle with rubber overmold and two finger trigger, includes wrist strap, for use with MX9, MX9CS, and MX9HL. Rated down to -30 deg C (-22 deg F).

Cases

MX9410CASE - Carry case for MX9 with no handle, includes shoulder strap. Includes display and keyboard protective film.

MX9411CASE - Carry case for MX9 with handle, includes shoulder strap. Includes display and keyboard

protective film.

艾韋迅IVYSUN是霍尼韋爾honeywell采集器的中國區核心經銷商，貨源充足、確保正品。專業的霍尼韋爾honeywell手持終端產品技術服務團隊，確保您采購使用無后顧之憂！購買國際品牌掃描器，請認準技術型服務商：艾韋迅IVYSUN (http://www.zhonglvzongshe.cn)。

MX9移動數據終端 Features and Benefits

超強的堅固性：IP67級設計，能夠承受從6英尺高處到水泥地面的多次墜落和1m范圍內近2000次的翻滾，減少停工時間，降低了總體擁有成本

隨處無線連接：通過WWAN無線電、GPS和WLAN支持實時無線連接，以獲取主要信息

可自定義的鍵盤： 帶有10個單擊式功能鍵的完整的制圖鍵盤，增加了使用的便捷性，提升了工作效率

室外清晰可見的顯示器： 半反射性顯示技術即使在直射陽光下仍可識讀，滿足了港口、多模態及其他顧客對室外數據采集的需求

霍尼韋爾honeywell MX9移動采集器參數

性能參數

設備類型數據采集器

操作系統Windows CE5.0 Professional

CPUPXA320 800MHz處理器

內存128MB Flash，128MB SDRAM

顯示器顯示屏：3.7英寸QVGA（240x320），半反射

觸控板：電阻式觸摸屏，帶筆針

按鍵帶背光燈的62鍵字母數字式和38鍵數字轉字母式

接口RS-232，USB2.0客戶端，語音輸出，Ethernet，充電連接

識讀性能解讀標準1D和2D條碼體系

無線數據WWAN：GSM，GPRS，Edge

WLAN：IEEE 802.11a/b/g無線網卡

WLAN安全標準：WEP，802.1x，LEAP，TKIP，MD5，EAP-TLS，EAP-TTLS，WPA-PSK，WPA v2.0，PEAP

WLAN天線：內置多樣性天線

WPAN：Bluetooth2.0+EDR，classII

GPS：GPS接收器

機械/電氣性能

防護設計抗摔強度：1.8m高度到水泥地面的多次墜落；

抗翻滾程度：依照IEC60068-2-32規格，能夠承受1m范圍內的2000次翻滾；

環境密封等級：受到獨立認證的防潮和防微塵顆粒等級達到IP67標準；

ESD：±8kV接觸放電；±15kV空氣放電；

電池鋰電池，11.1V，2400mAh；

12小時全班次電池壽命（每10秒通過WLAN或藍牙掃描和發送數據一次）；

其它參數

應用程序Wavelink TE，RFTerm（TN5250,TN3270,VT220），AppLock工具控制用戶應用權限及不希望改變的配置，Wavelink Avalanche和LXE Express Config兼容，Stay-Linked Ready；

產品尺寸251x99x69mm

產品重量595g

環境參數操作溫度：-20-50℃，存儲溫度：-20-70℃

相對濕度：5%-95%（無凝結）

其它功能音頻：麥克風、揚聲器帶可調節盈利控制；

存儲擴展：用戶可接觸的SD存儲卡槽，支持1GB或4GB SD存儲卡；

掃描頭：Near-Far Range Laser（Lorax），Standard Ranger Laser，2D imager；

開發環境：用戶Windwos Embedded系統的霍尼韋爾SDK開發套件；

霍尼韋爾honeywell MX9移動采集器應用

物流，制造，電商，碼頭，電子
